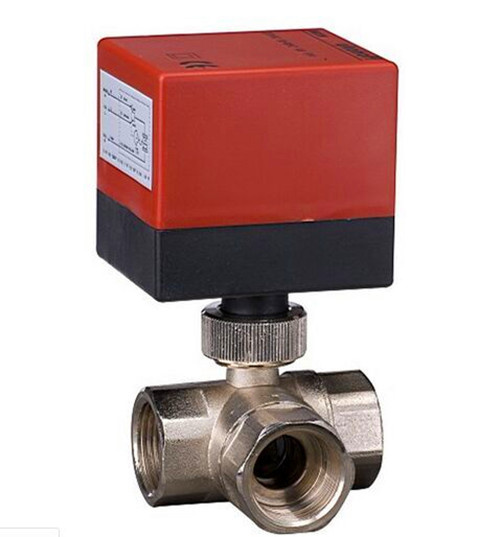

HVAC 3-Way Brass Motorized Ball Valve (KY-DQ320)
| Price: |
US $ 18-20/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
*DQ series of motorized ball valve are applied to controlling the on/off in the heating system and air-conditioning fan coil system, consist of ball valve and actuator.
*Actuator drives the ball valve rotate 90 degrees.
*Actuator adopts synchronous motor driver, internal limit contacts, can cut off the power when the valve is fully opened or closed, the action is stable.
*DQ series of motorized ball valve are widely used in the heating system, air-conditioning system and floor-heating system etc.
| Model | Spec. | Dimension(mm) |
Kv(m³/h) |
| DN (mm) | Internal thread | L | H | A |
Two-way | DQ215 | 15 | 1/2" | 62 | 106.5 |
| 3.8 |
| DQ220 | 20 | 3/4" | 60.3 | 106.5 |
| 7.3 |
| DQ225 | 25 | 1" | 70.2 | 109 |
| 11.8 |
| Three-way | DQ320 | 20 | 3/4" | 64.5 | 110 | 43 | 6.0 |

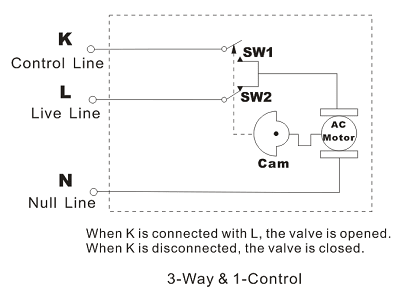

Principle diagram
| Prod Model: |
KY-DQ320 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
230VAC 24VAC 110VAC |
| Ways: |
2 Ways ,3 Ways |
| Dn: |
15,20,25 |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
